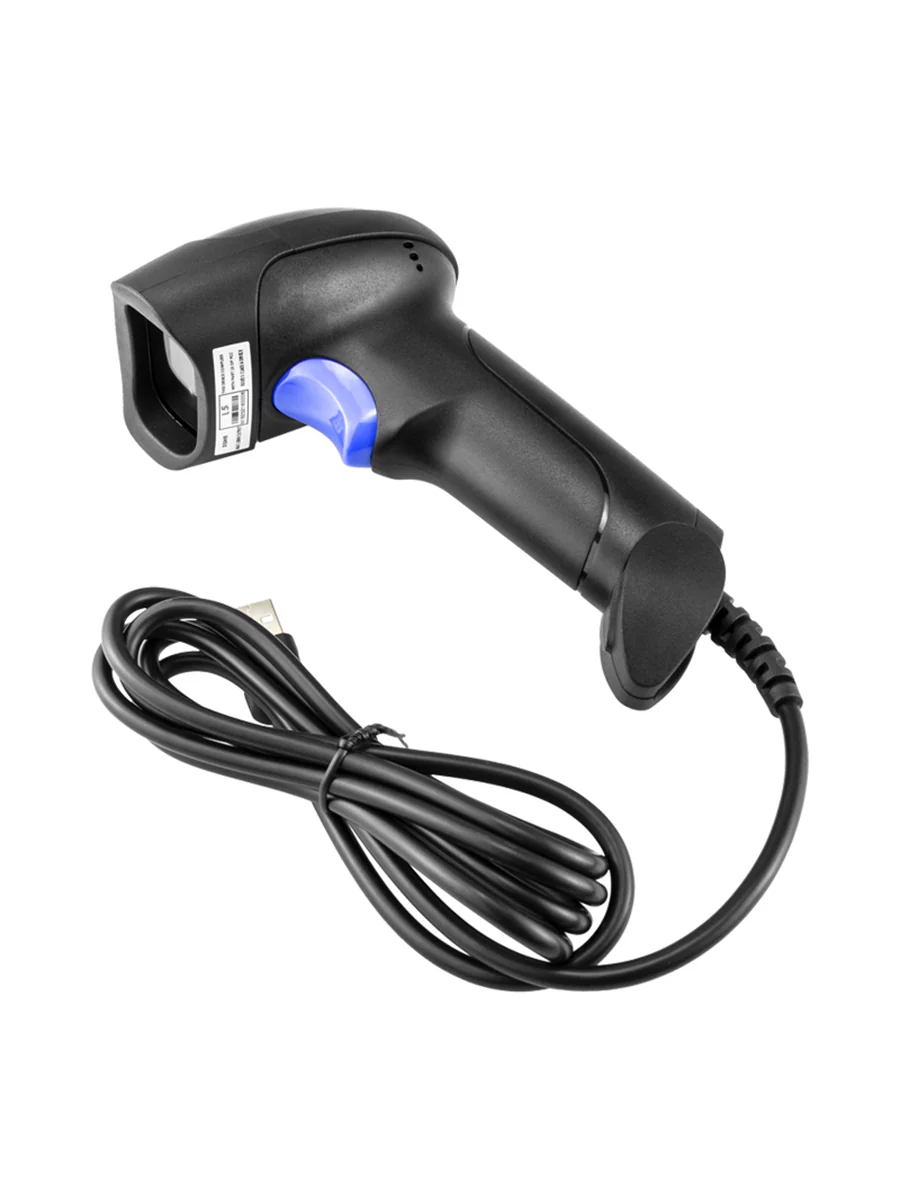

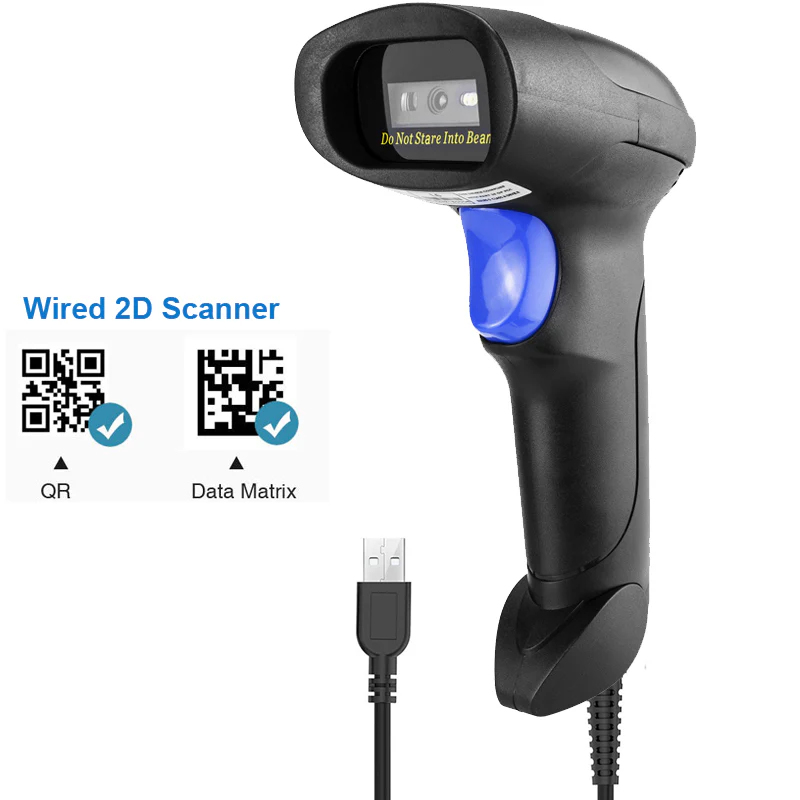

Netum Wired 2D L5 USB 2D Barcode Scanner

•  Features:

  32bit 2D QR USB Barcode Scanner:

  1D SCAN: UPC-A,UPC-E,EAN- 8,EAN-13,Code 39,Code 93,Code 32,Code39(ASCII),industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,NW7,Code 128,UCC/EAN128,USD-8,MSI/Plessey, UK/Plessey, UCC/EAN128,GS1 DataBar, postal code

  2D SCAN: Data Matrix(ECC200),QR Code,PDF417 ,For Data Matrix(ECC200) the default is off ,if you want open this function ,please contact us

  Easy to set up:



Plug & Play; Need no driver; ABS+PC material: Durable & Practical

Support Win7, Win8, Win10, iOS7, Mac OS X 10.8.4 or above.

Product Properties

Performance Image (Pixels) 640 pixels (H)x480 pixels (V)
Light Source (Aimer) Red color LED; (Illumination) White color LED
Connectivity Corded
Symbologies 2D
PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC 39,DataMatrix, etc.
1D
Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc
Resolution ≥ 5mil
Typical Depth of Field 5 mil (code39) 30mm-90mm
13 mil (code39) 40mm-195mm
15mil(QR code) 30mm-170mm
23x23mm QR (Screen) 100mm-500mm
Symbol Contrast 25%
Scan Angle Yaw(Skew) 65° Pitch 65°
Interface USB-HID; USB COM
Operating Voltage (3.3V~4.2V)±5%
Dimensions 60mm×165mm×95mm
Weight 160g
Environmental Operating Temperature -20°-60°
Storage Temperature -30°C to 70°C
Humidity 5%-95% (Non Condensing)
Certificates FC ,CE, Rohs
Accessories Scanner x1
USB Cable x 1
Quick Guide x1
