OR3002 FTTH WDM Optical Receiver with SC/APC and Dual RF Output

Convert an incoming optical CATV signal into RF output for television distribution with the compact OR3002 FTTH Optical Receiver with WDM.

Equipped with an SC/APC optical input, two RF outputs, ATT control, DC 5V power, and a clear optical-status indicator for FTTH and CATV installations in Lebanon.

3. Top 5 Benefits

1. Optical CATV-to-RF conversion
   Converts the received optical CATV signal into RF output for compatible television distribution systems.
2. Two RF outputs
   RF OUT1 and RF OUT2 provide convenient connection options for the installation.
3. SC/APC optical input
   Features a clearly identified green SC/APC connection for the incoming fiber line.
4. Integrated WDM design
   Designed for FTTH environments that combine optical services through WDM technology.
5. Clear signal-status indicator
   The built-in indicator displays green for normal optical status and red for low input status.

4. How to Use

1. Verify that the incoming FTTH/CATV optical signal and connector are compatible with the receiver.
2. Clean the SC/APC connector using proper fiber-cleaning tools.
3. Connect the incoming optical fiber to the green SC/APC port.
4. Connect the required coaxial cable to RF OUT1 or RF OUT2.
5. Connect the receiver to a suitable DC 5V power source.
6. Check the optical-status indicator:
   • Green: Normal
   • Red: Low
7. Use the ATT control only as required by the installation.
8. Test the RF television signal and complete the final system adjustment.

Safety note: Never look directly into an optical connector or the end of an active fiber cable.

5. Full Product Description

Compact FTTH Receiver for Optical CATV Networks

The OR3002 FTTH Optical Receiver with WDM is designed to receive an optical CATV signal through an FTTH network and convert it into RF output for television distribution.

Its compact metal housing, SC/APC optical connection, dual RF outputs, and simple status indicator make it a practical component for fiber installers, CATV technicians, internet service providers, and building distribution projects.

Confirmed Product Features

• Model: OR3002
• Device type: FTTH optical receiver
• Technology: WDM

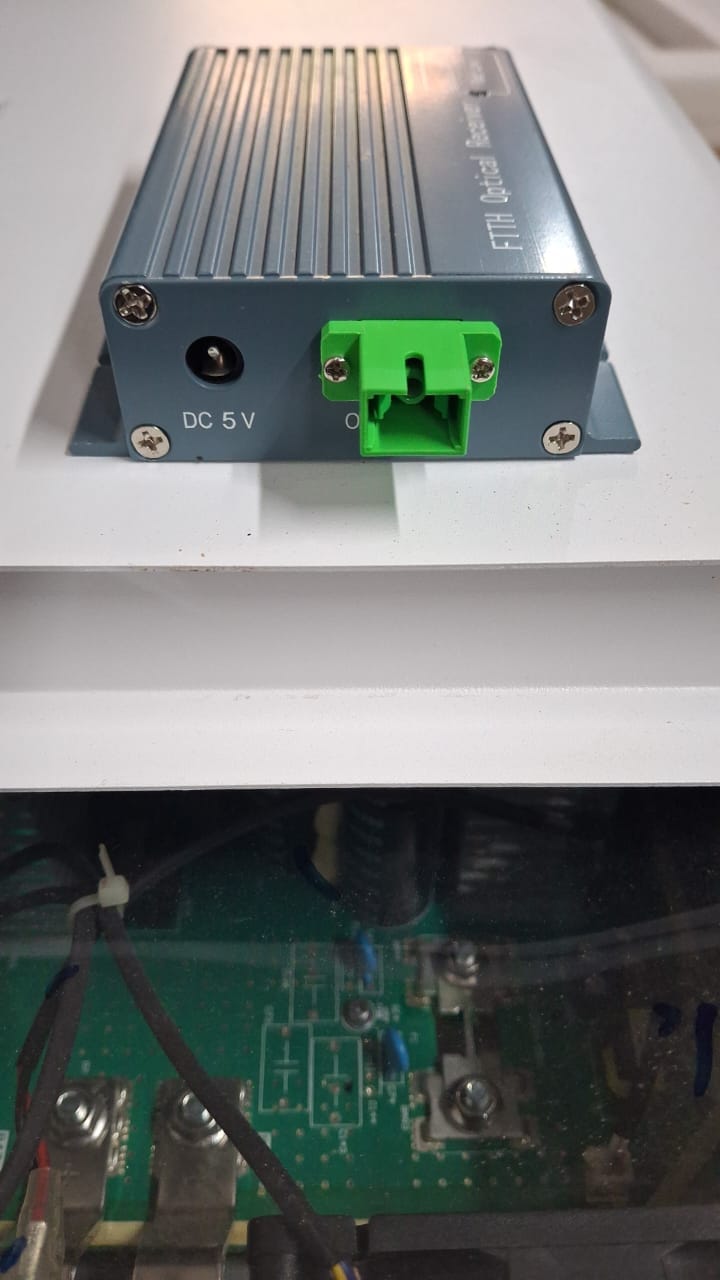

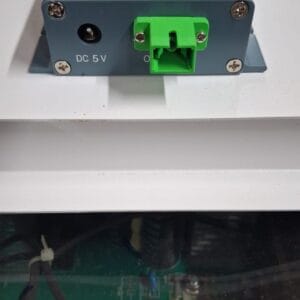

• Optical input: SC/APC
• RF outputs: Two
• Output labels: RF OUT1 and RF OUT2
• Power input: DC 5V
• Adjustment: ATT control
• Status indicator: Green for normal, red for low
• Housing: Compact metal enclosure

Converts Optical CATV to RF

The receiver accepts the incoming optical CATV signal through its SC/APC fiber port. It then provides RF output through the two coaxial connectors for connection to a compatible television or RF distribution system.

This makes the OR3002 useful where television services are delivered over an FTTH fiber network and need to be converted to an RF signal at the subscriber or distribution point.

Dual RF Outputs

The unit includes:

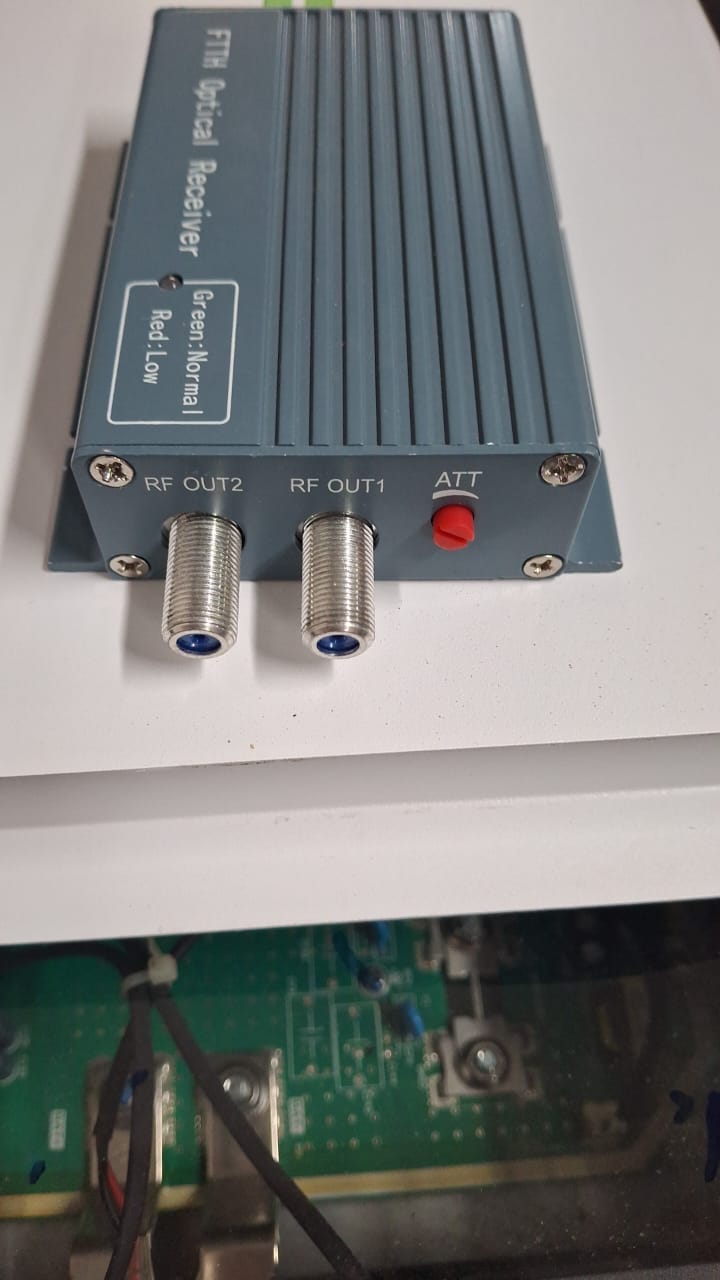

• RF OUT1
• RF OUT2

The two outputs provide greater installation flexibility compared with a receiver that has only one RF port. Final cabling, splitting, and signal distribution should be planned according to the site requirements and measured RF levels.

Optical Signal Indicator

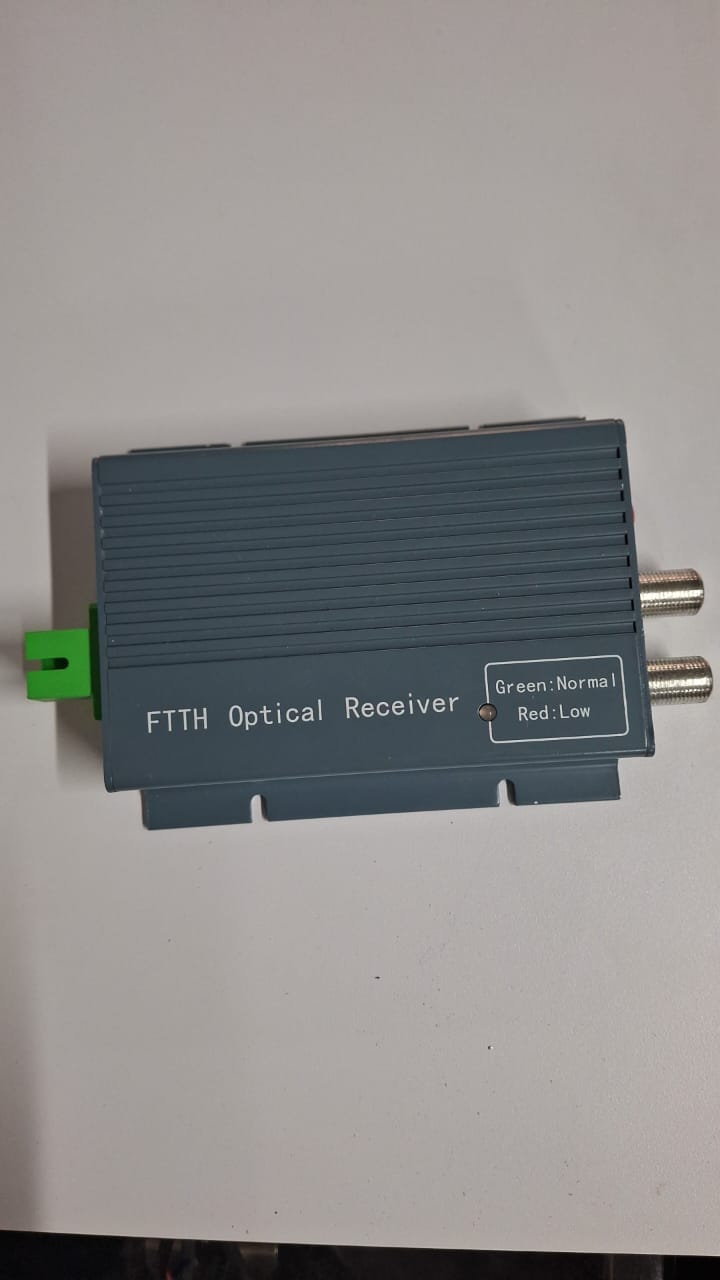

The front status indicator helps technicians check the optical input condition quickly:

• Green – Normal
• Red – Low

A red indicator suggests that the incoming optical level should be checked. Possible causes may include connector contamination, excessive optical loss, fiber damage, incorrect connections, or insufficient input power.

ATT Adjustment

The built-in ATT control allows the technician to adjust attenuation as required by the installation.

Adjustments should be made using appropriate RF-testing equipment. Avoid changing the ATT setting without measuring the output level, as the correct setting depends on the receiving system and installation conditions.

Suitable Applications

The OR3002 can be used in:

• FTTH CATV installations
• Optical television networks
• Apartment and building TV distribution
• Residential fiber connections
• Hotels and commercial properties
• ISP subscriber installations
• Telecommunications projects
• Fiber-to-RF conversion points
• CATV maintenance and replacement work

Who Is It For?

This product is suitable for:

• Fiber optic technicians
• CATV installers
• Network contractors
• Internet service providers
• Telecommunications maintenance teams
• Building system installers
• Technical workshops
• Professional installers in Lebanon

Installation Notes

Before installation, confirm the network wavelengths, optical input range, RF frequency range, output level, connector compatibility, and power requirements using the project specifications or complete manufacturer datasheet.

The listing describes the receiver shown with SC/APC input, dual RF outputs, ATT control, status indicator, and DC 5V input. Accessories should only be considered included when explicitly listed in the package contents.
